Star Printer

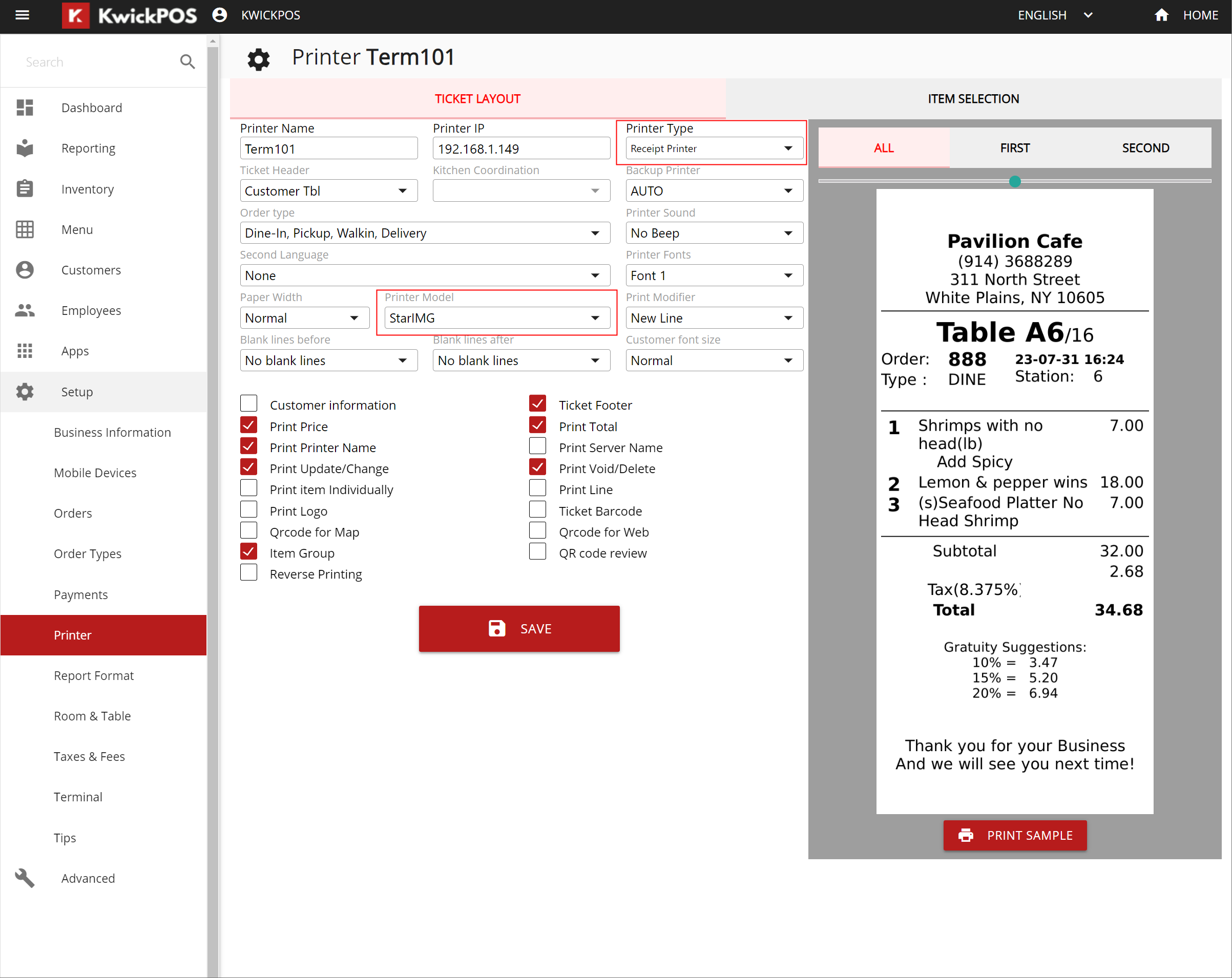

Star printer (TSP143III) with Opening cash draw. Ethernet connection only. Set up the Printer Model as “StarIMG.” It only works fine on the physical server, and the virtual server is not working.

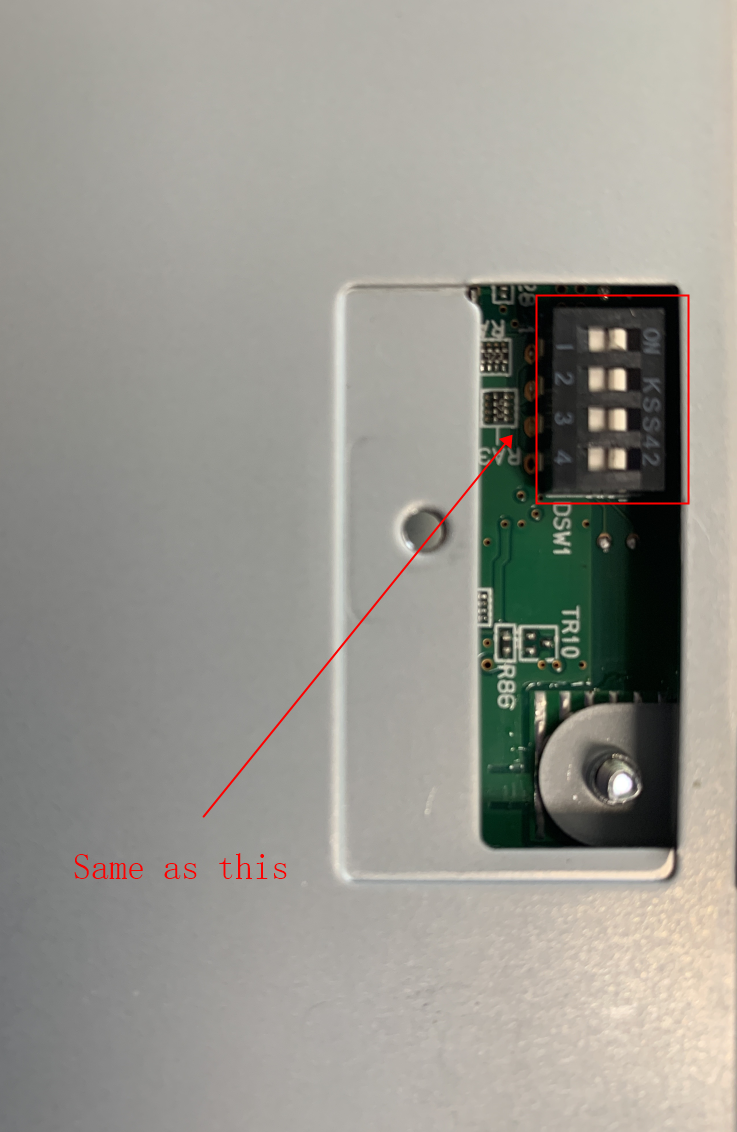

And if you did all right on the setting, but it still printing strange. Please check the back of the printer (Star SP700) with the dip switches. You need to turn off the printer and open the back cover to switch 1/2/3/4 keep up. Like the picture shown below.

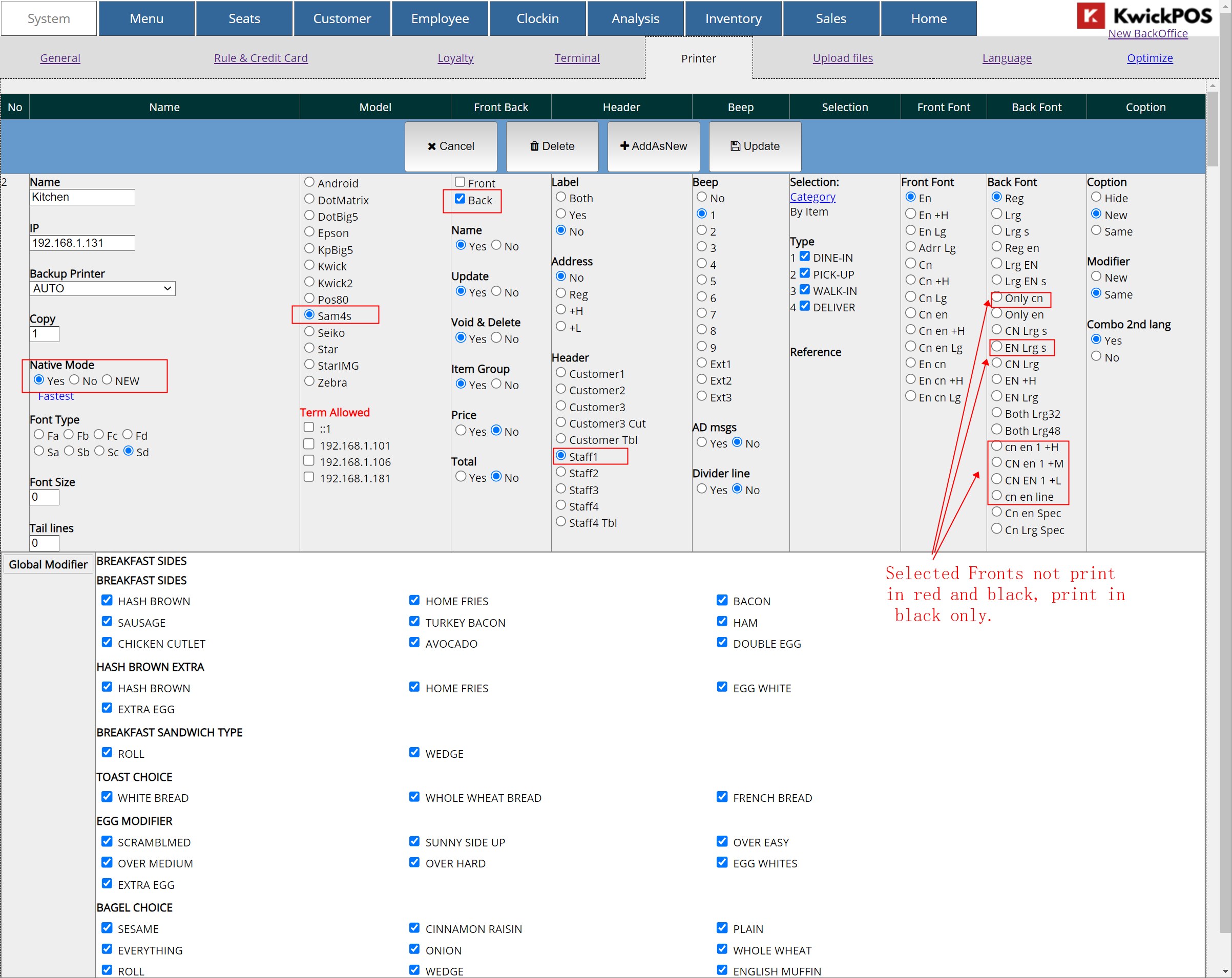

If you use a Star dot-matrix printer(SP700), please change the Printer Model to “Sam4s”, Native mode, staff1, and Back printer.

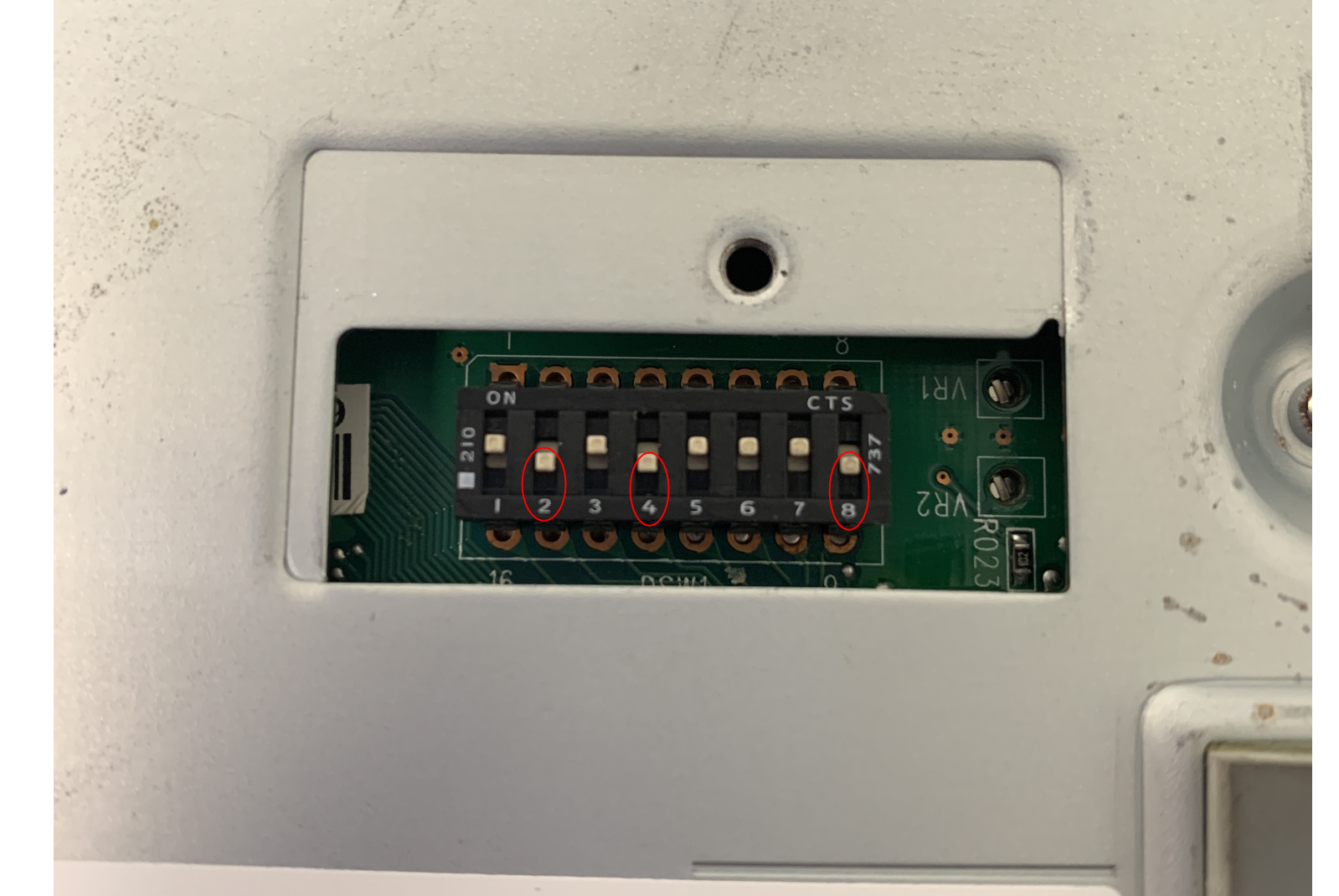

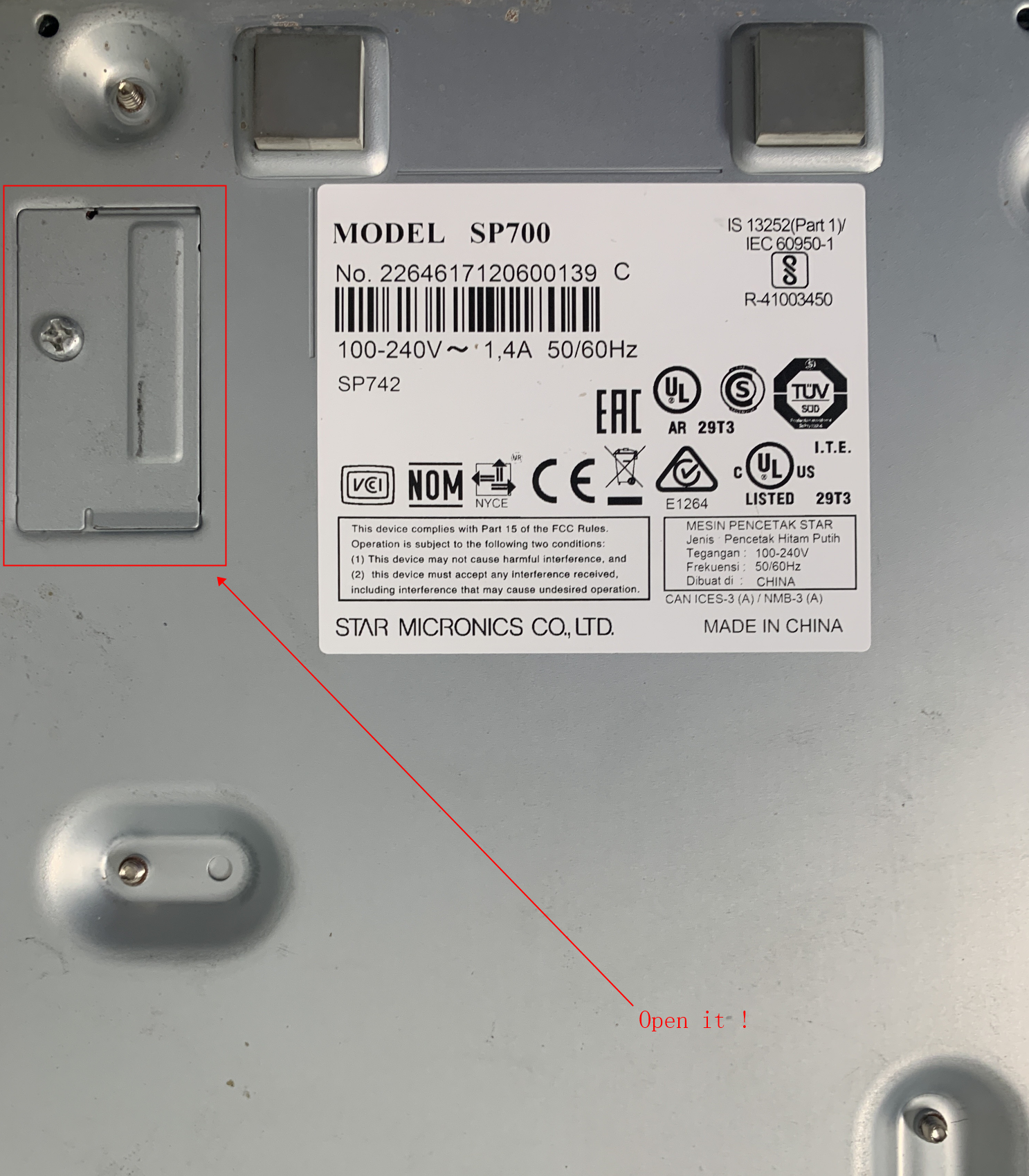

And if you did all right on the setting, but it still printing strange. Please check the back of the printer (Star SP700) with the dip switches. You need to turn off the printer and open the back cover to switch the 2/4/8 bar keep down and others going up. Like the picture shown below.
